Sink Module Manulift 6380-ESF

  • Wall-mounted, manual adjustment
  • ESF stainless steel, 1 shallow sink bowl

Mini Kitchen Module Manulift 6380-ESFS

  • Wall-mounted, manual adjustment
  • ESFS stainless steel, 1 shallow sink bowl

Mini Kitchen Module Manulift 6380-ES11S2

  • Wall-mounted, manual adjustment
  • ES11 inset sink under-glued in worktop

Sink Module Manulift 6380-ESF

Mini Kitchen Module Manulift 6380-ESFS

Mini Kitchen Module Manulift 6380-ES11S2

Wall Mounted Manual Sink Module 6380-ESF - Left
Wall Mounted Manual Sink Module 6380-ESF - Left
Wall Mounted Manual Sink Module 6380-ESF - Left

Wall Mounted Manual Sink Module 6380-ESF - Left

Select model

Wall Mounted Manual Sink Module 6380-ESF - Left
Left
Wall Mounted Manual Sink Module 6380-ESF - Right
Right

Lift Width

  • 99.0 cm
  • 119.0 cm

Planning Width

  • 100.0 cm
  • 120.0 cm

Accessories

Drawer, Baselift / Manulift
Drawer, 30 cm width
pcs
Drawer, 40 cm width
pcs
Drawer, 50 cm width
pcs
Drawer, 60 cm width
pcs
Drawer, 80 cm width
pcs
Drawer - Push-to-open
Drawer Push-to-open, 30 cm width
pcs
Drawer Push-to-open, 40 cm width
pcs
Drawer Push-to-open, 50 cm width
pcs
Drawer Push-to-open, 60 cm width
pcs
Drawer Push-to-open, 80 cm width
pcs
Cutlery compartment
Cutlery compartment, 30 cm width
pcs
Cutlery compartment, 40 cm width
pcs
Cutlery compartment, 50 cm width
pcs
Cutlery compartment, 60 cm width
pcs
Cutlery compartment, 80 cm width
pcs
Power socket, ALU-Design
Power socket, ALU-Design
pcs
Two-compartment frame, ALU-Design
Two-compartment frame, ALU-Design
pcs
Mini cabinet on wheels
Mini cabinet on wheels with drawer and inner drawer, fully extendable with soft-close
pcs
Mini cabinet on wheels with waste sorting and inner drawer, fully extendable with soft-close
Mini cabinet on wheels with waste sorting and inner drawer, fully extendable with soft-close
pcs

Your configuration
Description
Sink Module Mini 6380-ESF, Left incl. stainless steel sink with 1 shallow bowl, width 99 cm


Wall mounted, Manually Height Adjustable Sink Module - 6380-ESF. The module has a stainless steel sink with one shallow sink bowl.

The module is delivered complete and is available in left or right version.

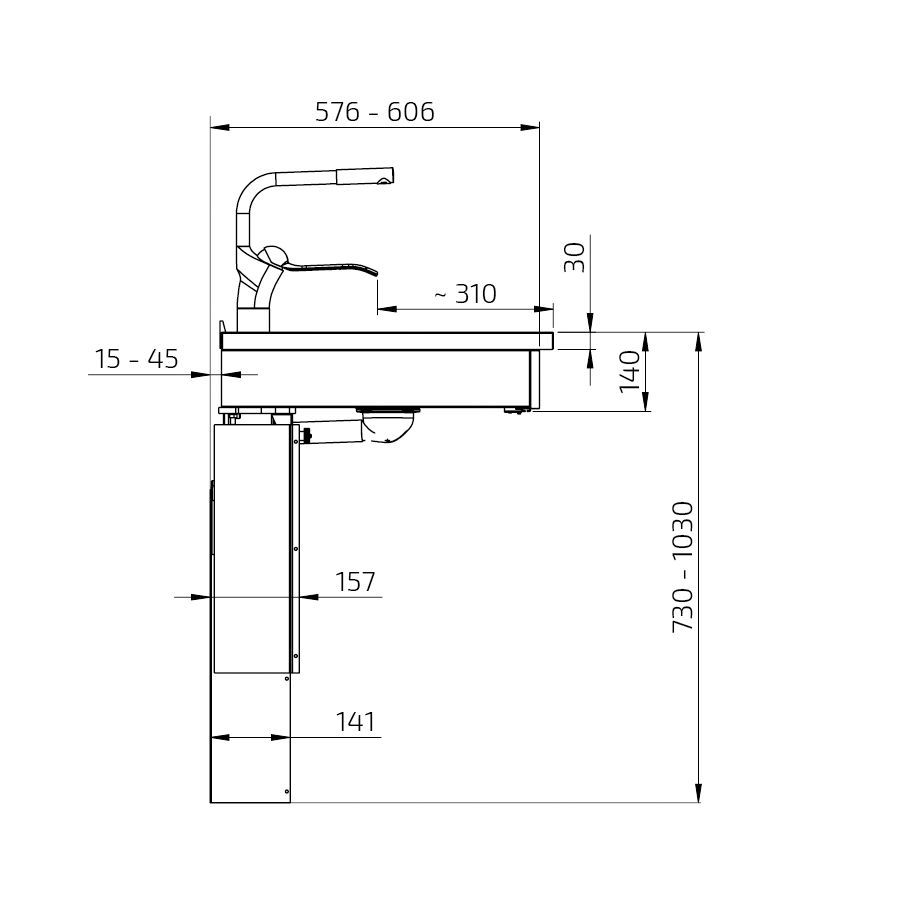

The modules have a 10 mm shorter width to automatically give 5 mm gap on either side of the unit for the up and down movement. They are also 15 mm shallower in depth to make room for splash protection/tiles.

The module can be integrated into environments from any kitchen manufacturer.

Functions and Advantages

  • 30 cm height adjustment
  • Adjustable depth 576-606 mm incl. Front
  • Tiltable worktop plane for adjustment

Standard equipment

  • Cover panels hiding installations on the wall under the worktop
  • Aluminium front rim
  • Worktop
  • Brushed aluminium rear edge strip
  • Mixer with long lever and flexible water hoses
  • ESF stainless steel sink with one shallow sink bowl and flexible drain hose
More Inspiration
MANULIFT 6380H is a manually adjustable worktop unit.
Sink, hob and drawer can be integrated into the worktop.
A built-in gas spring facilitates height adjustment: - Pull out the locking pin, adjust the height, (the gas spring provides lifting help). Lock the position with the locking pin.

Download

This product is covered by a 2-year warranty against manufacturing defects.
(According Machinery Directive 2006/42/EG, Annexe 2A)
